Info About: PIRANHA 412 new LM Circular Saw multisaw
| |
|
|
|
| | |
|
Contact Seller | |
| You must be logged in to access these Details | |
| | |
|
| | |
|
Description
| |
PIRANHA 412 new LM
Circular Saw multisaw to 1 shaft with rollers or carpet:

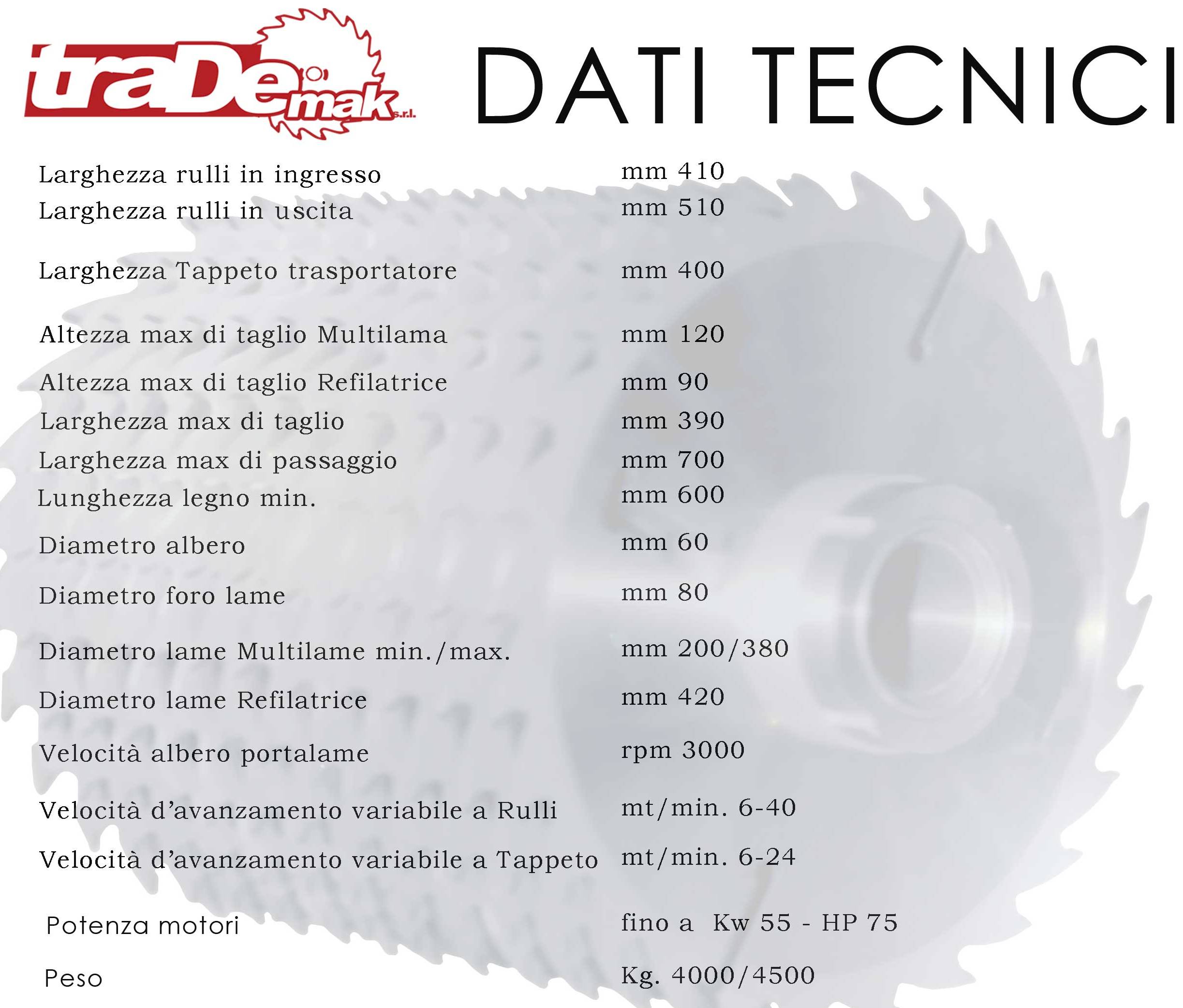

STANDARD FEATURES
Width mm rollers or conveyor belt. 400
Max width mm circular blade unit. 390
Max height of cut (without plattorello) mm. 120
Length min. work (standard) mm. 600
Max width of passage (with guard) mm. 750
Portacannotto mm shaft diameter. 60
Mm diameter circular blades. 80 + 2 ch.
Mm diameter circular blades. 200/380
Speed ​​blade shaft rpm. 3,800
Variable feed speed with ROLLERS 6/30 m / min
Variable feed speed with MAT 4-20 m / min
Blade shaft motor power KW HP 20-30-40-50-60 15-22-30-37-45
Lifting motor power 0.5 KW 0.33 HP blade shaft
Lifting pressure unit with reducer 0.18 HP 0.24 KW
Engine power transmission assisted by an inverter HP 1.5 KW -2 1.1-1.5
Net weight approx. 3.500/3.700 Kg
EQUIPMENT
Pre-installation moving blades
Manual pump for pressure lubrication carpet
Team short incoming support tables
1 Quill blade (without spacers)
1 wooden shoe
1 Set of wrenches
1 Maintenance Manual and machine use
1 Port Ø mm. 200 attack aspiration (required speed: 30m / s)
Electrical control unit and control panel
CE standards
Powder coating ipossidriche
Voltage 380/50 periods
Transmission controlled by inverter
watch video: http://www.youtube.com/watch?v=iLv9vWJzETo
|
| | |
|
Warranty & Guarantee
| |
 WARRANTY TYPE: Manufacturer
 GUARANTEE TYPE: Replacement
|
|
