Info About: Edger MADREW DCKKH III
| |
|
|
|
| | |
|
Contact Seller | |
| You must be logged in to access these Details | |
| | |
|
| | |
|
Description
| |

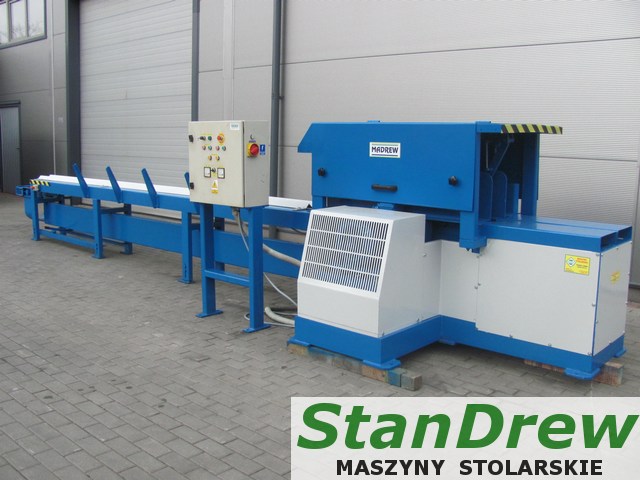

Edger MADREW DCKKH - 30 March
Saw two-disc - is intended for the production of piles and timbers from the sawmill raw material średniowymiarowego - all types of wood
- Machines in stock
- After reconditioned
- State vg
- Production Polish
- Documentation DTR
TECHNICAL PARAMETERS :
- The diameter of the discs used piłowych - the minimum fi 800
- The diameter of the discs used piłowych - the maximum fi 900
- The maximum height of cut - with discs fi 800 - 250 mm
- The maximum height of cut - with discs 300 mm 900-Fi
- The maximum diameter of 350 mm logs fi
- The length of 530 cm tops operator
- The spindle drive motor power 2 x 15 Kw
- Number of revolutions spindle 1400 rev / min
- Feeding motor power of 3 kW
- Number of revolutions feed 1,400 rev / min
- Infinitely variable feed rate - minimum of 4 m / min
- Infinitely variable feed rate - maximum 24 m / min
- Motor Power saws spacing of 0.75 KW
- Minimum spacing of 60 mm Saw
- The maximum distance between drinking 290 mm
- The amount of used discs piłowych - 2 pcs
- Minimum length of the raw material - 800 mm
- The maximum length of the raw material - 6000 mm
- Time stop spindles with saws up to 10 seconds
- The air velocity of 25 m / s
- The width of 1900mm
- Height 1400 mm
- Weight 1650 kg
|
| | |
|
Warranty & Guarantee
| |
 WARRANTY TYPE: Not Offered
 GUARANTEE TYPE: Not Offered
|
|
