Info About: CMA CPP/4 PNUEMATIC SLOT-CUTTING MACHINE
| |
|
|
|
| | |
|
Contact Seller | |
| You must be logged in to access these Details | |
| | |
|
| | |
|
Description
| |

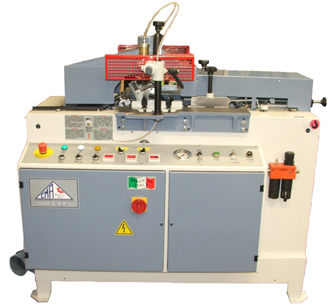

CMA CPP/4 PNUEMATIC SLOT-CUTTING MACHINE
- The CPP/4 window-shutter slot-cutter is designed to provide average or high output and is the only machine of its type capable of cutting slots of standard kinds in roller blind uprights with a single toothed rack. One of the main features which distinguishes the CPP/4 from conventional slot-cutters is derived, is the fact that the uprights themselves remain stationary while the bits are shifted sideways.
- The moving parts run on sealed ball bearings. The spindle carriage runs backwards and forwards on ground steel guides.
- The cutting interval is adjusted by means of a device acting on a toothed rack having constant pitch of 6,5mm to set the following cuts at a multiple of this distance with a maximum interval of 97,5mm.
- Slot depth, length, angle and position on the upright being processed are easily adjusted.
- All the various processing phases, from the activation of the clamping device to piece feeding and drill-bit advance, are carried out by means of a synchronised automatic pneumatic mechanism.
- The speed at which the bits penetrate the wood is maintained constant and regulated by means of a hydraulic device with micrometer measurement able to operate correctly even in the presence of variations in pressure. The same device also allows the speed to be regulated in relation to the hardness of the wood being processed: this feature, together with the very high drill-bit rotation speeds, ensures that he pieces processed are perfectly finished.
- The model CPP/4 machine is fitted with a device which allows a preset space (equal to the interval between slots or a multiple of this distance) to be left without slots in the centre of the upright. It is also complete with an automatic device which stops the machine when processing is complete.
In short:
- PNEUMATICALLY OPERATED THROUGHOUT
- 15 STEPS CAN BE CARRIED OUT WITH JUST ONE TOOTHED RACK
- BITS SHIFTED SIDEWAYS WHILE UPRIGHTS REMAIN STATIONARY
- SLOT DEPTH UP TO 25MM
- ONE OR MORE SLOTS CAN BE OMITTED DURING PROCESSING
- AUTOMATIC FORCED LUBRICATION
- MACHINE IS STOPPED AUTOMATICALLY WHEN PROCESSING IS COMPLETE
|
| | |
|
Warranty & Guarantee
| |
 WARRANTY TYPE: Manufacturer
 GUARANTEE TYPE: Not Offered
|
|
