Info About: C300 Combined Machine
| |
|
|
|
| | |
|
Contact Seller | |
| You must be logged in to access these Details | |
| | |
|
| | |
|
Description
| |
phone number；0638875774
address；2sam green road tunney germiston

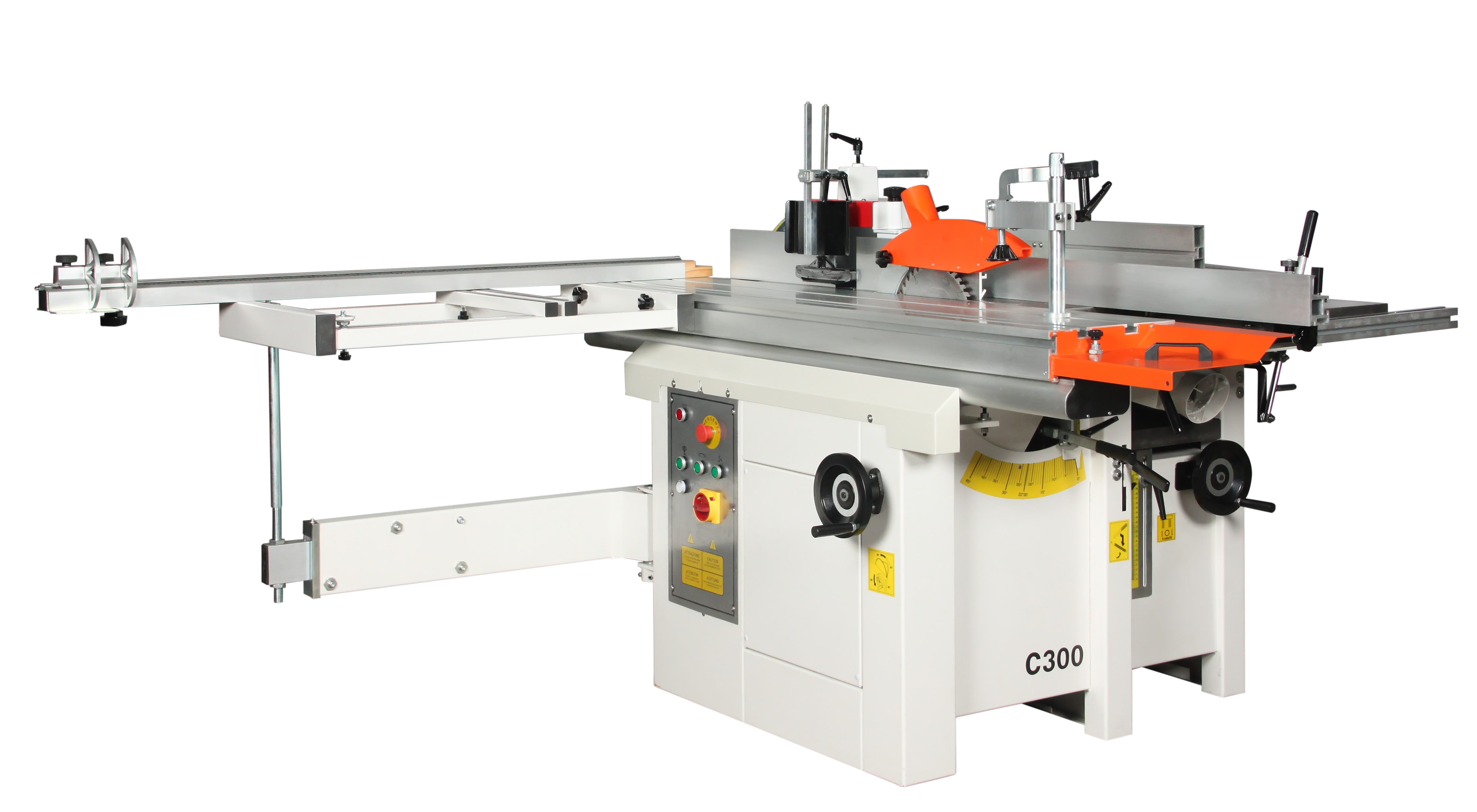

C300 Combined Machine combination machinery has been specifically designed be an industrial standard Woodworking machine
R90000
The C300 Combined Machine has been specifically designed be an industrial standard machine, but at a size intended for the factory and small professional workshop. This industrially rated machine features a table saw and sliding table, planer, thicknesser and spindle moulder unit. The cast iron construction, accurate cross cut fence and superb build quality put this machine in a class of its own.
Being a professional standard machine, the C300 of course is fully adjustable and the accuracy is second to none. As far as accuracy goes it will not even be bettered by full sized industrial machines. With three independent class 1 motors providing ample power, changing function can be done with the flick of a switch rather than the going through the laborious task of changing belts.
The saw utilises a sliding beam which runs along side the blade like a panel saw. By running the beam this close to the blade, 100% accuracy is assured.
The planer thicknessing function, again is of the highest quality, extremely powerful, accurate and the end result is simply sublime. The inward swing of the thicknessing unit keeps this machine compact in every function,whilst the cast iron construction means even heavy pieces can be handled confidently.
Several further options are also available, each machine can therefore be tailored to the users specific needs. These options include; heavy duty morticing unit, spindle moulder ring fence, power feeder and tenoning hood.
Features:
Panel saw sliding beam;Cast iron construction;3 x 2.2kw class 1 motors
Scoring for veneered boards;Sturdy swinging arm squaring frame
Micro adjust spindle moulder fence;Accurate cross cut fence with flipstops;Inward parallel swing planer table;Fully adjustable settings
Planer ； Unit ； C300
Working tables；mm；300x1500
Cutterblock diameter；mm；70
Cutterblock rotation speed；r.p.m ；5700
N. of knives；n°；3
knives dimensions；mm ；300x20x3
Max table adjustement；mm；4
Thicknesser；Unit；C300
Working table;mm;300x660
Feed speed;m/1' ;7
Max. working height; mm; 220
Min. working height; mm; 4
Cutterblock rotation speed; r.p.m.; 5700
Max. cutting depth; mm; 4
Mortiser ; Unit; C300
Working table; mm; 250x500
Longitudinal stroke; mm; 205
Trasversal stroke; mm; 95
Vertical stroke; mm; 90
Churck ; mm; 16
Churck rotation speed; r.p.m. ; 5700
Circular saw; Unit; C300
Working table; mm; 220x1000
Shaft rotation speed; r.p.m. ; 4500
Blade diameter; mm; 250
Blade bora diameter; mm; 30
Cutting height 90°; mm; 80
Max. distance between blade and fence; mm; 500
Blade inclination; 0° ; 45°
Max cutting height 45° ; mm; 50
Shaft rotation speed engraver; r.p.m. ; 7000
Engraver blade diameter; mm; 90
Engraver blade bora diameter; mm; 22
Shaper ; Unit ; C300
Working tables; mm; 220x1000
Shaft rotation speeds; r.p.m. ; 2000/3100/4400/7000
Standard shaft diameter; mm; 30
Spindle lenght; mm; 105
Shaft vertical stroke; mm; 115
Max. tool diameter; mm; 160
Max. tenoning depth; mm; 55
Tenoning carriage; Unit; C300
Carriage dimensions; mm; 1250x315
Carriage stroke; mm; 1250/1600
Standard accessories
N°2 clamp lever ;
Sharper fence;
Service wrenches;
Mortiser chuck;
Table extensions with swinging arms; mm; 860x600
Guards on mortiseur chuck;
3 pcs. planing knives;
Planer guide;
Saw guide;
Bridge sefety hood on planer;
3-phase motor power; HP - KW; 3,0 - 2,2
Weight ; kg; 550
Optiona accessories; Unit; C300
Single-phase motor; HP - KW; 3,0 - 2,2
Increasing 3-phase motor; HP - KW; 4,0 - 3,0
Contouring fence
Wescott(Diameter); mm; 16
Carriage stroke; mm; 1600/1600
Carriage stroke; mm; 1800/1800
Carriage stroke; mm; 2200x2200
