Info About: 400B Combined Machine
| |
|
|
|
| | |
|
Contact Seller | |
| You must be logged in to access these Details | |
| | |
|
| | |
|
Description
| |
The 400B Combined Machine combination machinery has been specifically designed be an industrial standard machine
R97500

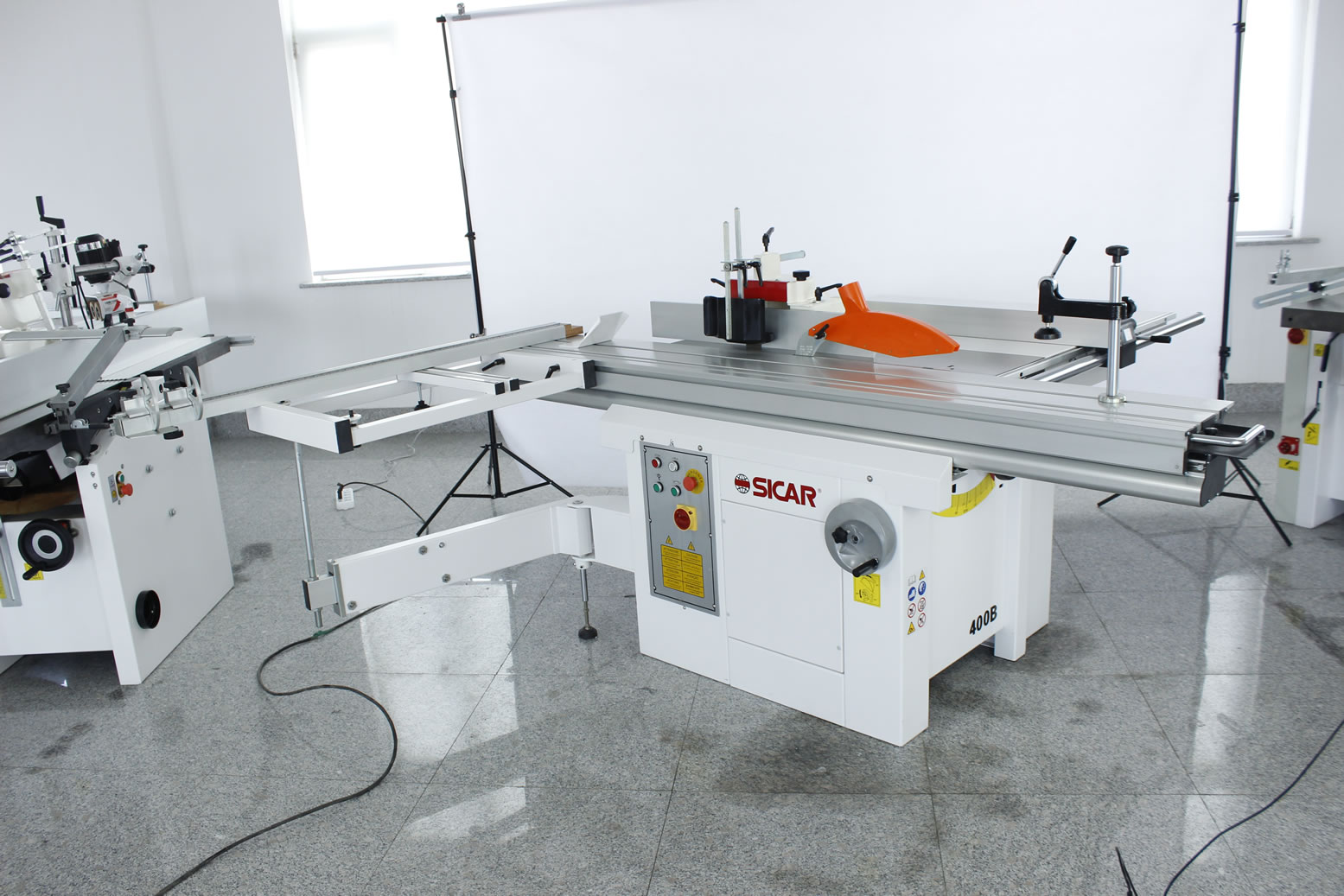

The 400B Combined Machine has been specifically designed be an industrial standard machine, but at a size intended for the factory and small professional workshop. This industrially rated machine features a table saw and sliding table, planer, thicknesser and spindle moulder unit. The cast iron construction, accurate cross cut fence and superb build quality put this machine in a class of its own.
The saw utilises a sliding beam which runs along side the blade like a panel saw. By running the beam this close to the blade, 100% accuracy is assured.
Several further options are also available, each machine can therefore be tailored to the users specific needs
Circular saw; Unit; 400B
Working table; mm; 326x1112
Shaft rotation speed; r.p.m. ; 4500
Blade diameter; mm; 300
Blade bora diameter; mm; 30
Cutting height 90°; mm; 100
Max. distance between blade and fence; mm; 730
Blade inclination; 0° ; 45°
Max cutting height 45° ; mm; 50
Shaft rotation speed engraver; r.p.m. ; 7000
Engraver blade diameter; mm; 90
Engraver blade bora diameter; mm; 22
Shaper ; Unit ; 400B
Working tables; mm; 326x1112
Shaft rotation speeds; r.p.m. ; 2000/3100/4400/7000
Standard shaft diameter; mm; 30
Spindle lenght; mm; 105
Shaft vertical stroke; mm; 115
Max. tool diameter; mm; 180
Max. tenoning depth; mm; 65
Tenoning carriage; Unit; 400B
Carriage dimensions; mm; 1800x315
Carriage stroke; mm; 1800/2200
Standard accessories
N°2 clamp lever ;
Sharper fence;
Service wrenches;
Table extensions with swinging arms; mm; 860x600
Saw guide;
3-phase motor power; HP - KW; 4,0 - 3,0
Weight ; kg; 380
Optiona accessories; Unit; 400B
Single-phase motor; HP - KW; 4,0 - 3,0
Increasing 3-phase motor; HP - KW; 5,5 - 4,0
Carriage stroke; mm; 2200/2200
Carriage stroke; mm; 2600/2600
Tenoning with protection shelf
