Info About: Vertical Breakdown Bandsaw
| |
|
|
|
| | |
|
Contact Seller | |
| You must be logged in to access these Details | |
| | |
|
| | |
|
Description
| |

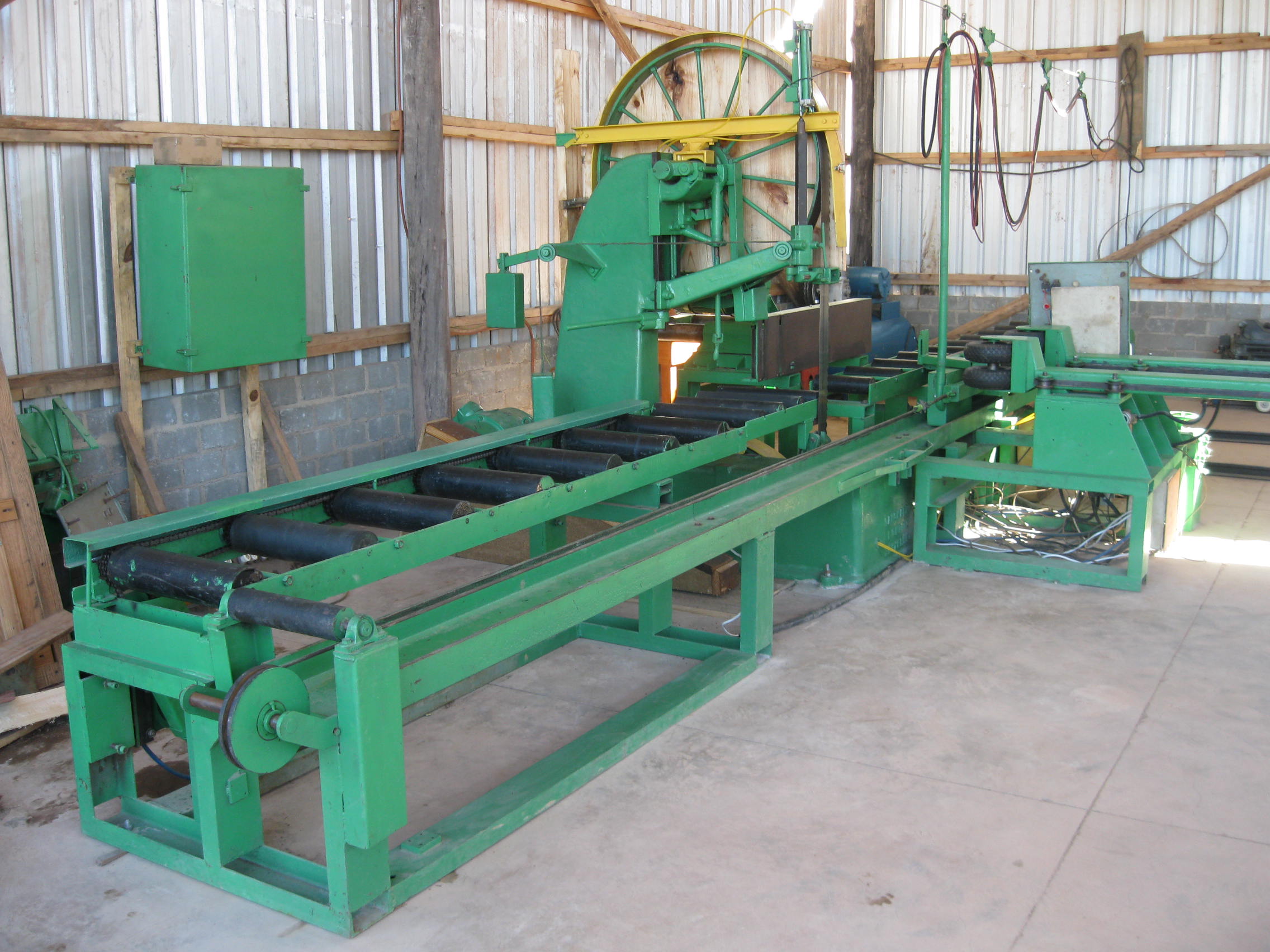

Vertical Bandsaw + Log Carriage
Designed for break down of short wood.
Free running carriage for flexibility.
High production through pneumatic and electric functions.
Total weight: ± 4.000 kg.
Headrig: DANCKAERT;
Type: Left cutting;
Wheels: 1150 x 90 mm; top-open, bottom-solid
Throat: 570mm;
Electric motor: 11 kW, 1450rpm, 3 x V-belt, multistep slowstarter Y-Y-∆-∆;
Inclusive: 2 x 4†blades = 7.200 x 100 mm.
Log Carriage: MEM;
Table Carriage: 2.100 mm, (can do 2.300 mm);
U-profile rails: 4 x 2.000 mm = 8.000 mm;
Variable forward and reverse of carriage by electric winch;
Gearbox motor: 4kW;
Variable gearbox: 25 – 0 – 25 rpm;
Variable cutting speed; carriage return speed 0-40m/min;
Pneumatic log clamping from head, stop is adjustable;
Build in pneumatic carriage push-off from saw blade for save return;
Double pneumatic pusher to press wood against fence;
Electrical adjustable guiding fence: 1470 mm, 2.2kW;
Clock reading: 0 – 50 cm, max 55 cm;
Electrical outfeed conveyor roller, motor 0.55 kW;
Used, reconditioned
Price: ex works; excl. VAT
|
| | |
|
Warranty & Guarantee
| |
 WARRANTY TYPE: Not Offered
 GUARANTEE TYPE: Not Offered
|
|
