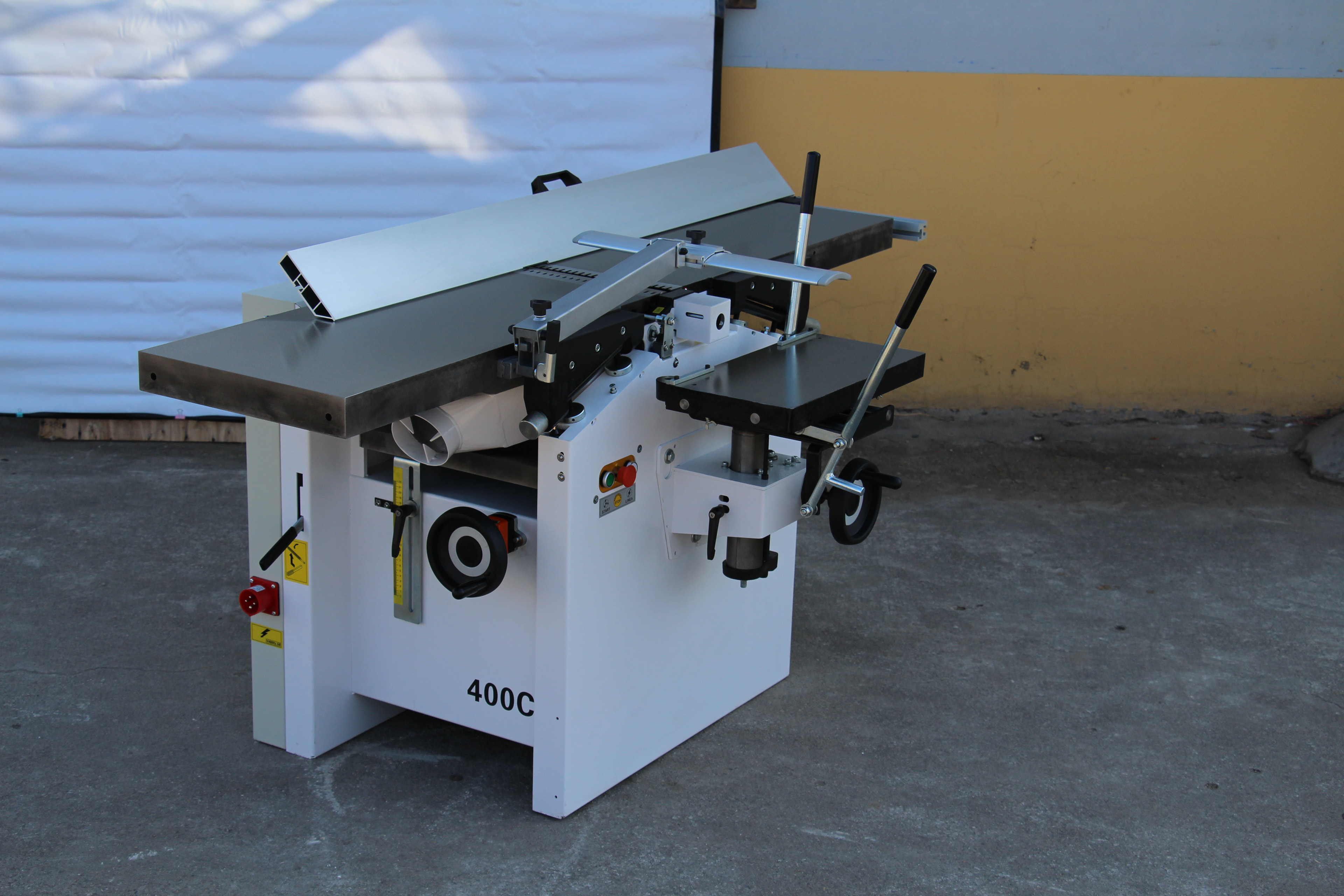

Info About: 400C Combined Machine
| |
|
|
|
| | |
|
Contact Seller | |
| You must be logged in to access these Details | |
| | |
|
| | |
|
Description
| |
The 400C Combined Machine combination machinery has been specifically designed be an industrial standard machine
The 400C Combined Machine has been specifically designed be an industrial standard machine, but at a size intended for the factory and small professional workshop. This industrially rated machine features a planer, thicknesser and mottiser unit. The cast iron construction, accurate cross cut fence and superb build quality put this machine in a class of its own.
The planer thicknessing function, again is of the highest quality, extremely powerful, accurate and the end result is simply sublime. The inward swing of the thicknessing unit keeps this machine compact in every function,whilst the cast iron construction means even heavy pieces can be handled confidently.
Several further options are also available, each machine can therefore be tailored to the users specific needs.
Planer ； Unit ； 400 C
Working tables；mm；400x1800
Cutterblock diameter；mm；70
Cutterblock rotation speed；r.p.m ；5700
N. of knives；n°；3
knives dimensions；mm ；400x20x3
Max table adjustement；mm；4
Thicknesser；Unit；400C
Working table;mm;400x760
Feed speed;m/1' ;7
Max. working height; mm; 220
Min. working height; mm; 4
Cutterblock rotation speed; r.p.m.; 5700
Max. cutting depth; mm; 4
Mortiser ; Unit; 400C
Working table; mm; 250x500
Longitudinal stroke; mm; 205
Trasversal stroke; mm; 95
Vertical stroke; mm; 90
Churck ; mm; 16
Churck rotation speed; r.p.m. ; 5700
Standard accessories
Service wrenches;
Mortiser chuck;
Guards on mortiseur chuck;
3 pcs. planing knives;
Planer guide;
Bridge sefety hood on planer;
3-phase motor power; HP - KW; 4,0 - 3,0
Weight ; kg; 385
Optiona accessories; Unit; 400C
Single-phase motor; HP - KW; 4,0 - 3,0
Increasing 3-phase motor; HP - KW; 5,5 - 4,0
Wescott(Diameter); mm; 16
